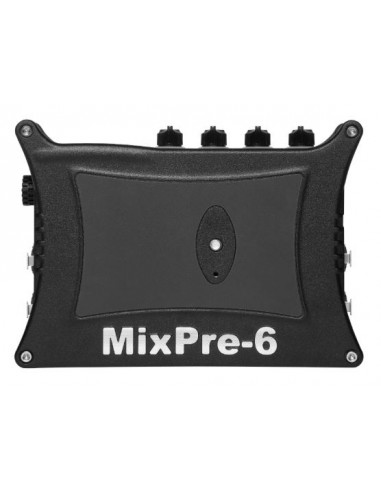

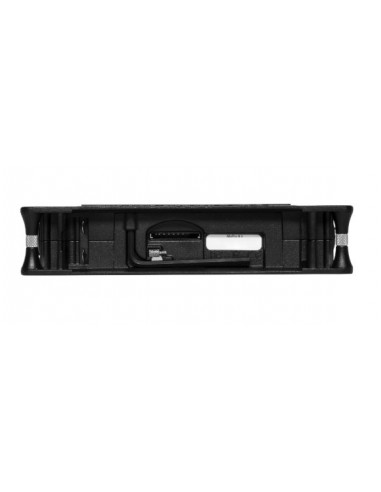

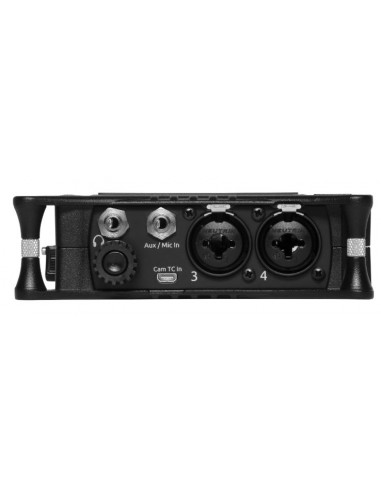

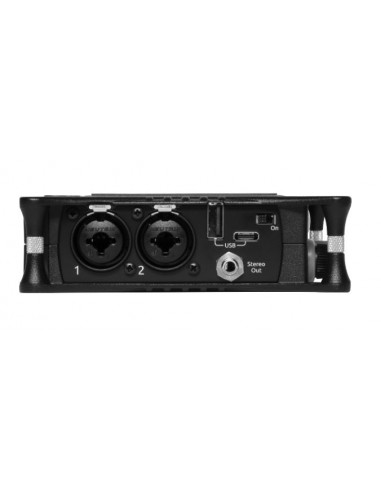

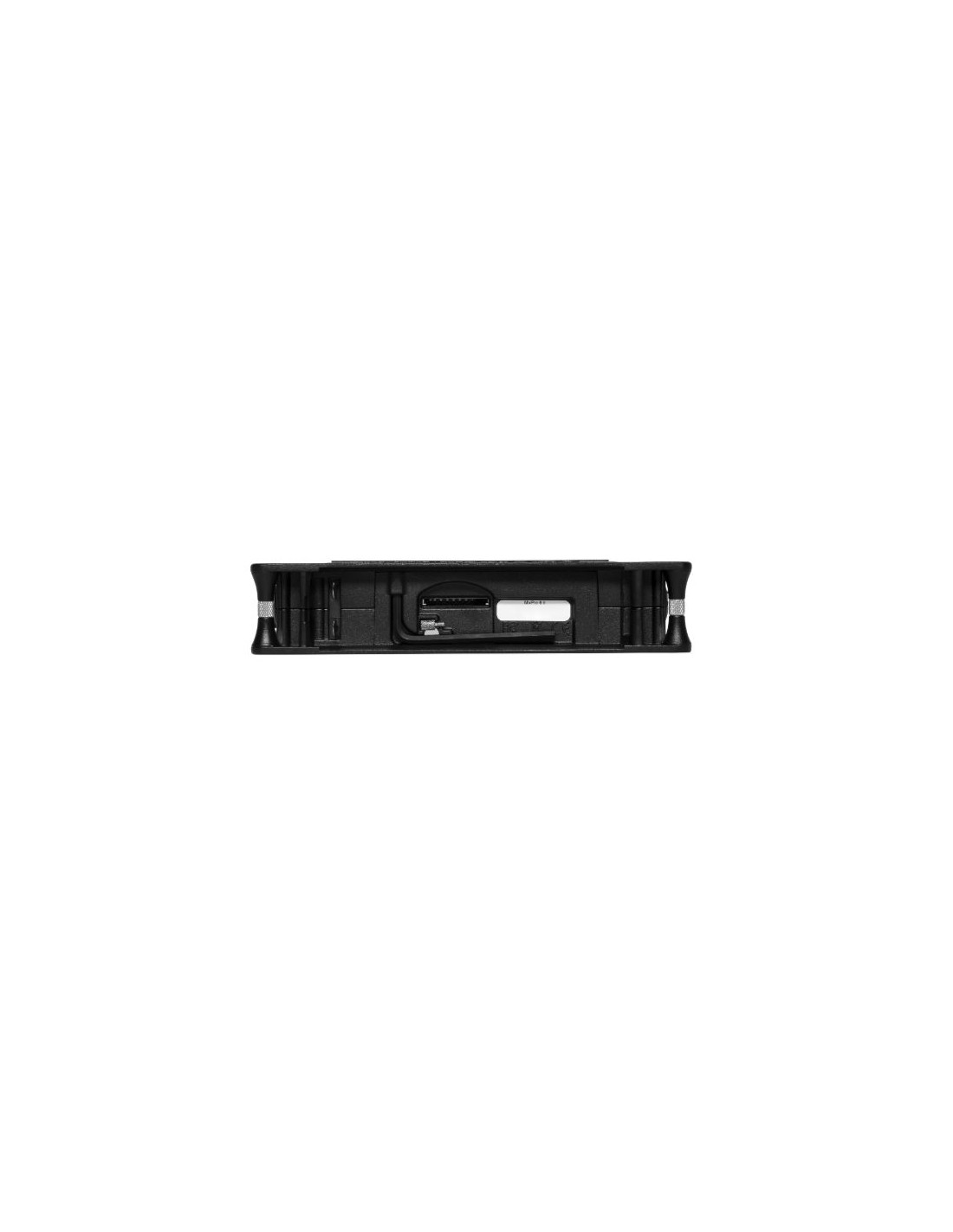

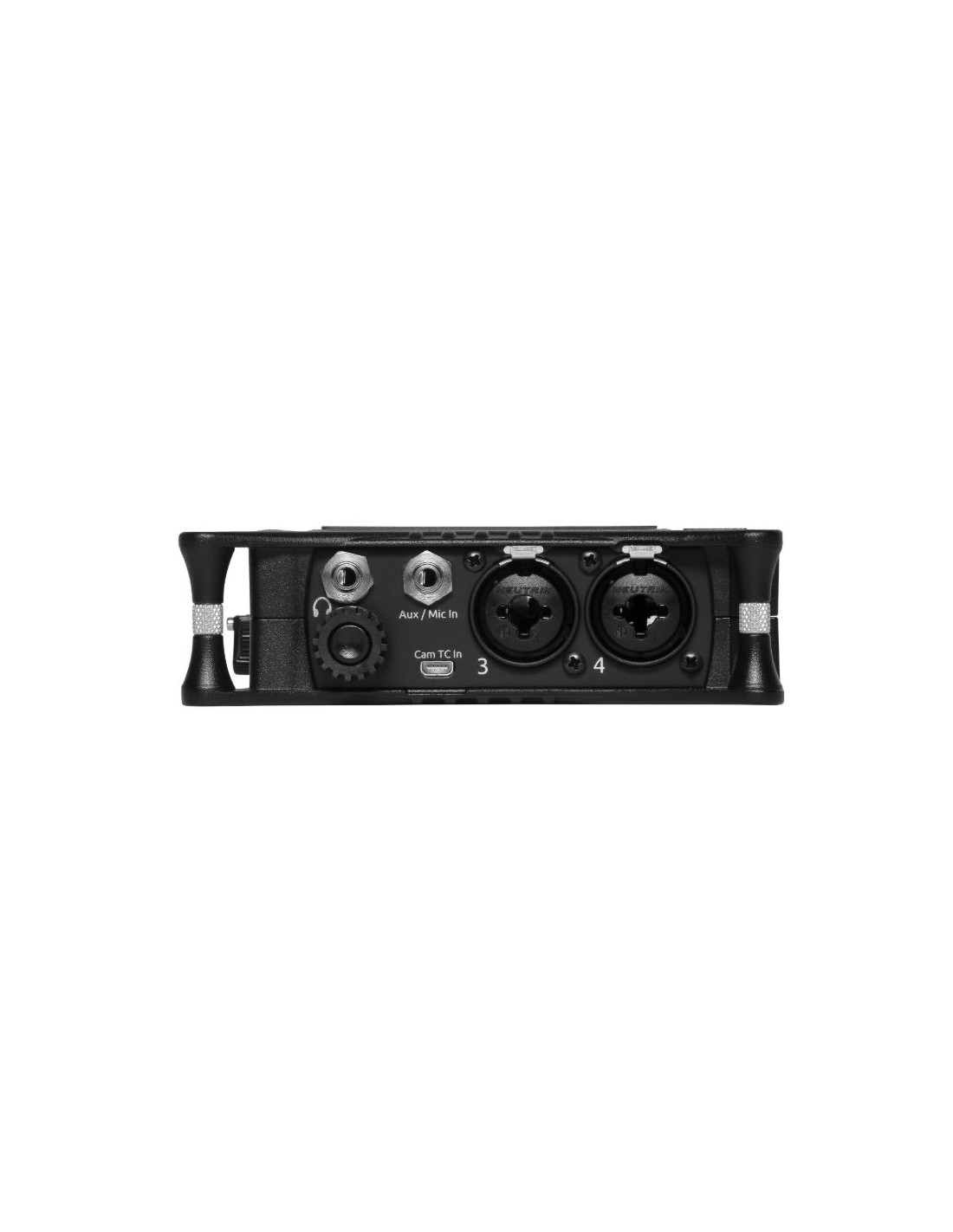

MIXETTE SOUND DEVICE MIX-PRE 6 II

• Quatre préamplis micro "Kashmir" ultra-silencieux avec limiteurs réglables capturent un son de haute qualité sur le terrain, sur le plateau ou avec un ordinateur.
• Créez un mix à l'aide du mixeur portable 6 x 2 intégré.
• Enregistrez jusqu'à 8 pistes sur une carte SD et sauvegardez sur une clé USB.
• L'interface audio USB 8 entrées et 4 sorties est diffusée sur votre ordinateur via USB-C avec un échantilonage allant jusqu'à 32 bits.
• De 16 à 32 bits et des taux d'échantillonnage de 44,1 kHz à 192 kHz.
  Générateur de timecode LTC interne. Timecode In / Out via Aux In / Stereo Out.
• Timecode et enregistrement du déclenchement via HDMI.
• USB-A pour les surfaces de contrôle, les claviers et la copie automatique sur une clé USB.
• Mélange ISO, gain, panoramique, coupe-bas, inversion de phase et alimentation fantôme intégrés.
• Écran tactile couleur lisible au soleil et mesure LED.
• Léger, durable et petit: parfait pour une utilisation dans un sac, un enregistrement mobile ou un home studio.
• Un ampli casque puissant de 300 mW + 300 mW permet une référence claire et précise de l'audio.
• Comprend un coupleur de batterie MX-4AA (piles non incluses), une alimentation secteur MX-PSU et un câble USB-C vers USB-C.

Audio Inputs

• Frequency Response

10Hz to 80kHz +/- 0.5dB re 1kHz @ 192kHz sample rate

• THD + Noise

0.005% max (@1kHz, 22-22kHz BW, gain=20dB, -10dBu in)

• ADC

32 bit precision; 142 dB dynamic range min (A-weighted, gain=10dB, fader=0dB)

• Equivalent Input Noise

-130dBV (-128dBu) max (A-weighting, gain=76dB, 150 ohm source impedance)

• Inputs

Mic: XLR active-balanced; 4k input

Line: XLR active-balanced; 4k input

Aux/Mic in: 3.5mm TRS, 2-channel unbalanced; 100k input

Line: ¼-inch TRS active-balanced; 4k input

USB Audio: 4 channels

6 Total analog inputs: 4 mic-line inputs, 2 on Aux In'

All inputs fully RF-filtered and overload protected.

• Gain

Mic input: +6dB to +76dB

Line input: -20dB to +30dB

Fader: -inf to +20dB

Headphone: -inf to +20dB

Total, Mic-to-recording (max): +96dB

Aux In (Mic): Gain = +10dB to +40dB

Aux In (Line): Gain = -10dB to +20dB

Total Aux Gain including Fader (Mic-to-recording): +60dB

• Maximum Input Level

Mic XLR: +14dBu (limiters on or off)

Line XLR: +28dBu (limiters on or off)

Aux In (Mic): -10dBu

Aux In (Line): +10dBu

• Low Cut Filters

40Hz to 160Hz (adjustable), 18 dB/oct. First stage analog, subsequent stages digital.

• Microphone Powering

Mic XLRs: 48V via 6.8k resistors, 10mA each

Mic 3.5mm: 3V @ 3k source

• Limiters

Limiter at all gain stages, range > 40dB. First stage analog, subsequent stages digital. Adjustable Threshold, Ratio, and Release.

Audio Outputs

• DAC feeding Stereo Out, Headphone Out

32 bit precision; 115dB dynamic range (A-weighted)

• Stereo Out

3.5mm TRS stereo unbalanced, 500 ohm output, +7.8dBu max output level

• Headphones Out

3.5mm TRS stereo unbalanced, 300mW + 300mW, for use with any impedance headphones

• USB

Audio Interface (USB-C): 8-in/4-out; 44.1 to 96 kHz; 16/24/32-bit integer, 32-bit float; Class-compliant USB 2.0 high speed or ASIO® (supplied via download)

Mass Storage (USB-C): USB 2.0 high speed

Keyboard (USB-A): Text entry and control

Thumbdrive (USB-A): Manual or auto-copy to drive

Midi Control Surface (USB-A)

Recording

• Maximum Record Tracks

8 Tracks: Stereo mix + 6 ISOs

• Sampling Frequency

44.1 kHz

47.952 kHz

48 kHz

48.048 kHz

96 kHz

192 kHz

• Bit Depth

16

24

32 Float

• Recording Storage

Type: SD, SDXC, SDHC Card (USB thumbdrive, copy only)

Max Storage Size: 512 GB (SDXC)

Card format: exFAT

• File Type

Polyphonic WAV

Timecode

• Timecode Modes

Free Run

Time of Day (file stamped w/current ToD)

Rec Run

Ext LTC (file stamped w/incoming LTC on 3.5mm Aux In)

Camera TC (file stamped w/incoming TC from cameras that output TC)

• Timecode Frame Rates

Auto-detects (fps): 23.98 (same as 23.976)

24

25

29.97DF

29.97ND

30

30DF

• 3.5 mm Aux In

Timecode Input

Timecode: 20k ohm impedance, 0.3 V - 3.0 V p-p ('17 dBu - +3 dBu)

• 3.5 mm Stereo Out

Timecode Output

Timecode: 1k ohm impedance, 3.0V p-p (+12 dBu)

• HDMI

TC Reader via HDMI

• Sample/Timecode Accuracy

0.2 ppm (0.5 frames per 24 hours)

Remote Control

Bluetooth LE: Wireless control using Wingman app

HDMI (micro): Auto-record start/stop trigger from cameras that output record flag over HDMI

Timecode: Auto-record start/stop trigger via Aux In timecode

Touch Screen

320x256; 1.6-inch, color, sunlight-viewable IPS LCD

Power

AA Batteries: 4x AA sled (included); 8x AA sled (optional accessory). NiMH recommended

From computer: Bus-powered via USB-C port; optional MX-USBY cable, connects one USB-C to two USB-A ports

AC Adapter: MX-PSU (included) Power supply wall adapter w/ USB-C connector; 15W; has 4 adapter plugs for US, UK, AU & Europe

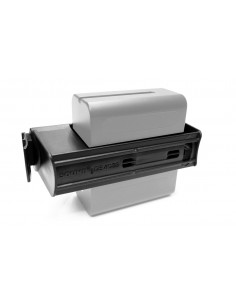

L-Mount: Optional sled for 2x (hot-swappable) Sony L-type Li-ion batteries

Environmental

Operating: -20°C to 60°C, 0 to 90% relative humidity; (non-condensing)

Storage: -40°C to 85°C

Dimensions and Weight

Dimensions: 36mm x 166 mm x 118 mm (H x W x D); 1.40" x 6.53" x 4.65"

Weight: .56 kg; 19.9 oz. (unpackaged, without batteries)
