EN STOCK
Enregistreur audio portable avec interface audio USB
5 pistes : mixage stéréo + 3 pistes isolées
Résolution : 32 Bit -Flottant / 192 kHz
Plage dynamique : 142 dB (A pondéré, gain = 10 dB, fader = 0 dB)
Générateur de timecode intégré
Audio Inputs
Frequency Response
10 Hz to 80 kHz +/- 0.5 dB re 1 kHz @ 192 kHz sample rate
THD + Noise
0.005% max (@1 kHz, 22-22 kHz BW, gain= 20 dB, -10 dBu in)
ADC
32 bit precision; 142 dB dynamic range min (A weighted, gain = 10 dB, fader = 0 dB)
Equivalent Input Noise
-130 dBV (-128 dBu) max (A-weighting, gain = 76 dB, 150 ohm source impedance)

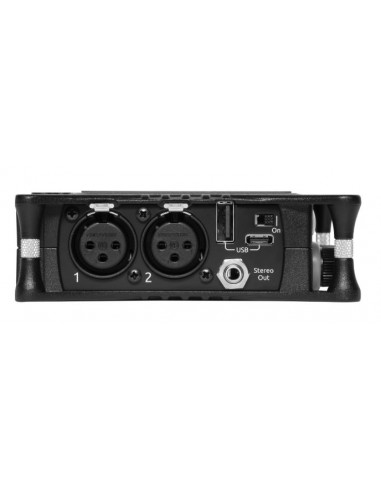

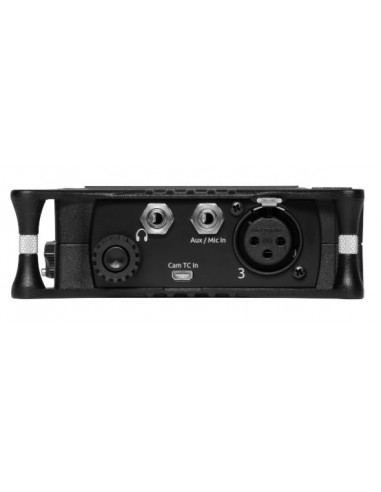

Inputs
Mic: XLR active-balanced; 4k input
Line: XLR active-balanced; 4k input
Aux/Mic in: 3.5 mm TRS, 2-channel unbalanced; 100k input
USB Audio: 2 channels
5 Total analog inputs: 3 mic-line inputs, 2 on Aux In
All inputs fully RF-filtered and overload protected.
Gain
Mic input: +6 dB to +76 dB
Line input: -20 dB to +30 dB
Fader: -inf to +20 dB
Headphone: -inf to +20 dB
Total, Mic-to-recording (max): +96 dB
Aux In (Mic): Gain = +10 dB to +40 dB
Aux In (Line): Gain = -10 dB to +20 dB
Total Aux Gain including Fader (Mic-to-recording): +60 dB
Maximum Input Level
Mic XLR: +14 dBu (limiters on or off)
Line XLR/¼-inch: +28 dBu (limiters on or off)
Aux In (Mic): -10 dBu
Aux In (Line): +10 dBu
Low Cut Filters
40 Hz to 160 Hz (adjustable), 18 dB/oct. First stage analog, subsequent stages digital.
Microphone Powering
Mic XLRs: 48 V via 6.8k resistors, 10 mA each
Mic 3.5 mm: 3 V @ 3k source
Limiters
Limiter at all gain stages, range > 40dB. First stage analog, subsequent stages digital. Adjustable Threshold, Ratio, and Release.
'
Audio Outputs
DAC feeding Stereo Out, Headphone Out
32 bit precision; 115 dB dynamic range (A-weighted)
L/R Out
3.5 mm TRS stereo unbalanced, 500 ohm output impedance, +7.8 dBu max output level
Headphones Out
3.5 mm TRS stereo unbalanced, 300 mW + 300 mW, for use with any impedance headphones
'
USB
Audio Interface (USB-C): 6-in/2-out (from computer); 44.1 kHz/48 kHz/96 kHz; 16/24/32-bit integer, 32-bit float; Class-compliant USB 2.0 high speed driver
Mass Storage (USB-C): USB 2.0 high speed
Keyboard (USB-A): Text entry and control
Thumbdrive (USB-A): Manual or auto-copy to drive
Midi Control Surface (USB-A)
'
Recording
Maximum Record Tracks
5 Tracks Stereo mix + 3 ISO's
Sampling Frequency
44.1 kHz
47.952 kHz
48 kHz
48.048 kHz
96 kHz
192 kHz
Bit Depth
16
24
32 Float

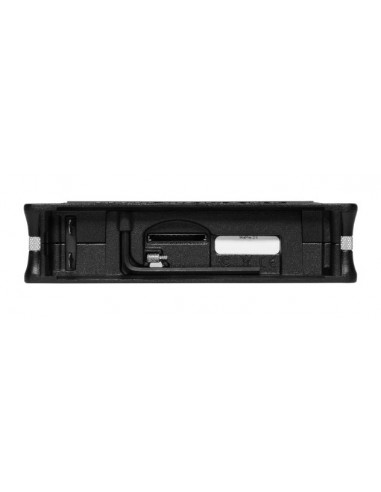

Recording Storage
Type: SD, SDXC, SDHC Card, & USB thumbdrive (copy only)
Max Storage Size: 512 GB (SDXC)
Card format: exFAT
File Type
Polyphonic WAV
Timecode
Timecode Modes
Free Run
Time of Day (file stamped w/current ToD)
Rec Run
Ext LTC (file stamped w/incoming LTC on 3.5mm Aux In)
Camera TC (file stamped w/incoming TC from cameras that output TC)
Timecode Frame Rates
Auto-detects (fps): 23.98 (same as 23.976)
24
25
29.97DF
29.97ND
30
30DF
3.5 mm Aux In
Timecode Input
Timecode: 20k ohm impedance, 0.3 V - 3.0 V p-p ('17 dBu - +3 dBu)
3.5 mm Stereo Out
Timecode Output
Timecode: 1k ohm impedance, 3.0V p-p (+12 dBu)
HDMI
TC Reader via HDMI
Sample/Timecode Accuracy
0.2 ppm (0.5 frames per 24 hours)
Remote Control
Bluetooth LE: Wireless control using Wingman app
HDMI (micro): Auto-record start/stop trigger from cameras that output record flag over HDMI
Timecode: Auto-record start/stop trigger via Aux In timecode
Touch Screen
320x256; 1.6-inch, color, sunlight-viewable IPS LCD
Power
AA Batteries: 4x AA sled (included); 8x AA sled (optional accessory). NiMH recommended
From computer: Bus-powered via USB-C port; optional MX-USBY cable, connects one USB-C to two USB-A ports
L-Mount: Optional sled for 2x (hot-swappable) Li-ion batteries
From computer: Bus-powered via USB-C port
AC Adapter: MX-PSU (included) Power supply wall adapter w/ USB-C connector; 15 W; has 4 adapter plugs for US, UK, AU & Europe
Environmental
Operating: -20°C to 60°C, 0 to 90% relative humidity; (non-condensing)
Storage: -40°C to 85°C
Dimensions and Weight
Dimensions: 36 mm x 144 mm x 110 mm (H x W x D); 1.40" x 5.68" x 4.35"
Weight: .48 kg; 16.8 oz. (unpackaged, without batteries)
